Vesper::Layer Class Reference

Represents a reusable application layer that receives lifecycle callbacks (attach, detach, update, events, render, and ImGui render). Intended as a base class for concrete layers. More...

#include <Layer.h>

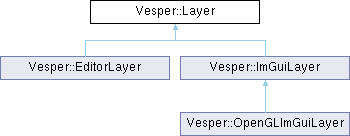

Inheritance diagram for Vesper::Layer:

Public Member Functions
	Layer (const std::string &name="Layer")
	Constructs a Layer with an optional name for debugging purposes.
virtual	~Layer ()
virtual void	OnAttach ()
	Called when the layer is attached to the application.
virtual void	OnDetach ()
	Called when the layer is detached from the application.
virtual void	OnUpdate (Timestep ts)
	Called every frame to update the layer with the given timestep.
virtual void	OnEvent (Event &event)
	Called when an event is dispatched to the layer.
virtual void	OnRender ()
	Called when the layer should render its contents.
virtual void	OnImGuiRender ()
	Called when the layer should render its ImGui components.
const std::string &	GetName () const
	Retrieves the name of the layer for debugging purposes.

Protected Attributes
std::string	m_DebugName
	The name of the layer assigned at creation, used for debugging.

Detailed Description

Represents a reusable application layer that receives lifecycle callbacks (attach, detach, update, events, render, and ImGui render). Intended as a base class for concrete layers.

Constructor & Destructor Documentation

Layer()

Vesper::Layer::Layer

(

const std::string &

name = "Layer"

)

Constructs a Layer with an optional name for debugging purposes.

Parameters

name	The name of the layer, used for debugging, defaulted to "Layer".

        : m_DebugName(name)
    {
    }

References Layer().

Referenced by Layer().

~Layer()

Vesper::Layer::~Layer ( )

virtual

    {
    }

Member Function Documentation

GetName()

const std::string & Vesper::Layer::GetName ( ) const

inline

Retrieves the name of the layer for debugging purposes.

{ return m_DebugName; }

OnAttach()

virtual void Vesper::Layer::OnAttach ( )

inlinevirtual

Called when the layer is attached to the application.

Reimplemented in Vesper::EditorLayer, Vesper::ImGuiLayer, and Vesper::OpenGLImGuiLayer.

{};

Referenced by Vesper::Application::PushLayer(), and Vesper::Application::PushOverlay().

OnDetach()

virtual void Vesper::Layer::OnDetach ( )

inlinevirtual

Called when the layer is detached from the application.

Reimplemented in Vesper::EditorLayer, Vesper::ImGuiLayer, and Vesper::OpenGLImGuiLayer.

{};

OnEvent()

virtual void Vesper::Layer::OnEvent ( Event & event )

inlinevirtual

Called when an event is dispatched to the layer.

Parameters

event

The event being dispatched.

Reimplemented in Vesper::EditorLayer, Vesper::ImGuiLayer, and Vesper::OpenGLImGuiLayer.

{}

OnImGuiRender()

virtual void Vesper::Layer::OnImGuiRender ( )

inlinevirtual

Called when the layer should render its ImGui components.

Reimplemented in Vesper::EditorLayer, Vesper::ImGuiLayer, and Vesper::OpenGLImGuiLayer.

{};

OnRender()

virtual void Vesper::Layer::OnRender ( )

inlinevirtual

Called when the layer should render its contents.

Note

Layers are responsible for their own rendering needs.

Todo

add layer rendering into the application's render loop

{};

OnUpdate()

virtual void Vesper::Layer::OnUpdate ( Timestep ts )

inlinevirtual

Called every frame to update the layer with the given timestep.

Parameters

ts	The timestep representing the time elapsed since the last update.

Reimplemented in Vesper::EditorLayer.

{};

Member Data Documentation

m_DebugName

std::string Vesper::Layer::m_DebugName

protected

The name of the layer assigned at creation, used for debugging.

---

The documentation for this class was generated from the following files:

• Vesper/src/Vesper/App/Layer.h
• Vesper/src/Vesper/App/Layer.cpp
